75kw Flash Dryer Chemical Equipment Sulphur Bordeaux Drying Machine

Ask Lasest Price
Brand Name :	SNYNXN
Model Number :	XSG-8
Certification :	CE, GMP, ISO 9001, AAA, SGS
Price :	Negotiable
Payment Terms :	T/T, L/C, D/A, Western Union
Delivery Time :	IN 50 DAYS

Add to Cart

Product Details
Company Profile

75kw Flash Dryer Chemical Equipment Sulphur Bordeaux Drying Machine

Product Description: XSG Series Revolving cassava flash vaporization dryer

XSG Series Revolving Flash Vaporization Dryer is a new model of drying equipment.It is represents advanced technology,compact structure and wide application.It has a large production capacity with high quality,less energy consuming and non-pollution.Processes of drying, crushing and sieving complete in the same equipment once. Its performance is up to the international advanced level.

75kw Flash Dryer Chemical Equipment Sulphur Bordeaux Drying Machine

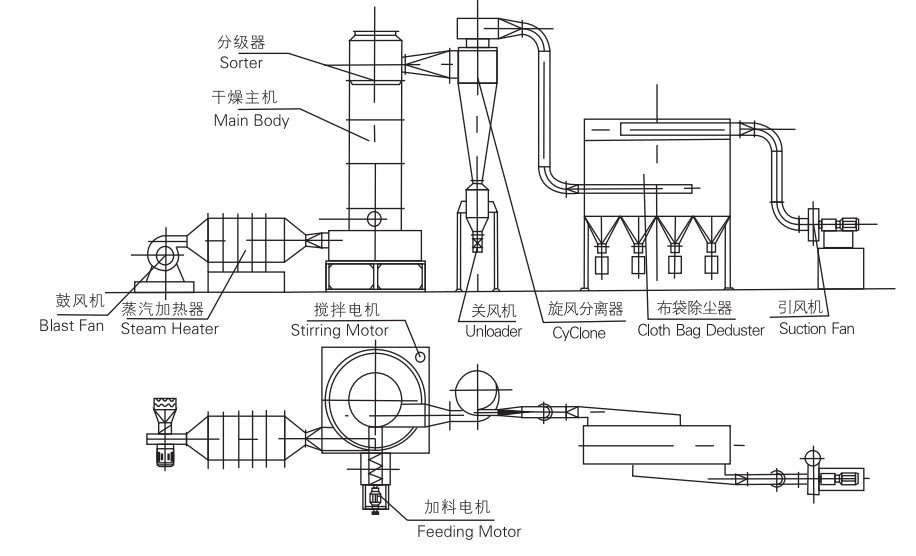

Operating Principle:

Hot air goes into the bottom of the dry through an entrance pipe with an appropriate speed,and drives stirring and drying chamber.The air flow brings strong shearing,blowing,floating,and revolving to granulated,collide and rub.Materials become small particles and easy to transfer the heat.Heavy wetter particles got granulated,small particles is brought up by air flows and get dry further in this process.In this rotary motion of gas solid two phase fluid makes the solid particle separated from the gas flow by centrifugal force,the relative speed between gas and solid is very high,therefore the heat transmission is more effective and great heat released in the process.

Features and Advantages:

1. The drying process of the materials in the room is fast, and the drying time of the materials in the room is short, which can effectively prevent the deterioration of the sensitive materials.

2. The drying chamber is equipped with grading ring and cyclone, and the fineness and final moisture of materials are adjustable. The special air distribution device reduces the equipment resistance and effectively improves the drying uniformity of materials.

3. Special cooling device and air tight package are set at the bottom of the dryer to avoid deterioration of materials in the high-temperature area at the bottom.

4. It can effectively control the final moisture and fineness, and ensure the uniformity of moisture content and fineness of products through the adjustment of feeding, hot air temperature and classifier.

Application Field:

Paste, slurry, filter cake and other materials, plate and frame pressure filtration or centrifuge dewatering materials. For example:

1. Inorganic: boric acid, calcium carbonate, hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide, various metal hydroxides, various heavy metal salts, synthetic cryolite, etc;

2. Organic matter: atrazine (pesticide), lauric acid, benzoic acid, benzoic acid, bactericide, sodium oxalate, cellulose acetate, etc;

3. Ceramics: kaolin, silica, clay, etc;

4. Dyes: anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various azo dye intermediates.

5. Food: soybean protein, gum starch, distiller's grains, wheat sugar, wheat starch, etc.

75kw Flash Dryer Chemical Equipment Sulphur Bordeaux Drying Machine

Model	Inner Diameter(mm)	Air Volume(m³/h)	Evaporation Capacity(kg/h)	Total Power(kw)	Max Height(m)	Covering Area(㎡)
XSG-2	200	350-500	12-17	10	4	15
XSG-4	400	1150-2000	40-70	20	4.8	20
XSG-6	600	2450-4500	80-150	40	5.8	28
XSG-8	800	4450-7550	150-250	65	6.5	35
XSG-10	1000	7000-12500	230-425	85	7.1	40
XSG-12	1200	10000-20000	300-600	105	7.8	52
XSG-16	1600	18000-36000	600-1000	150	8.8	80
XSG-20	2000	28200-56500	1000-1500	230	10.1	150

Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;

Sale-service:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer’s requirements.

After-sale service:
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.

Service commitment:
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.

FAQ

In order to quote you the proper machine model price, we would like to get the following information include in your inquiry:
1.What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
2.What is the capacity per hour you need (kg/h),this capacity is haddle capacity or final product capacity?

3.What is the initial moisture and final moisture of finished products you want?
4.What about the maximum heat temperature of raw material?
5.What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
6.Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
7.Provide us your country’s electricity information, such as phases, voltage, HZ?
