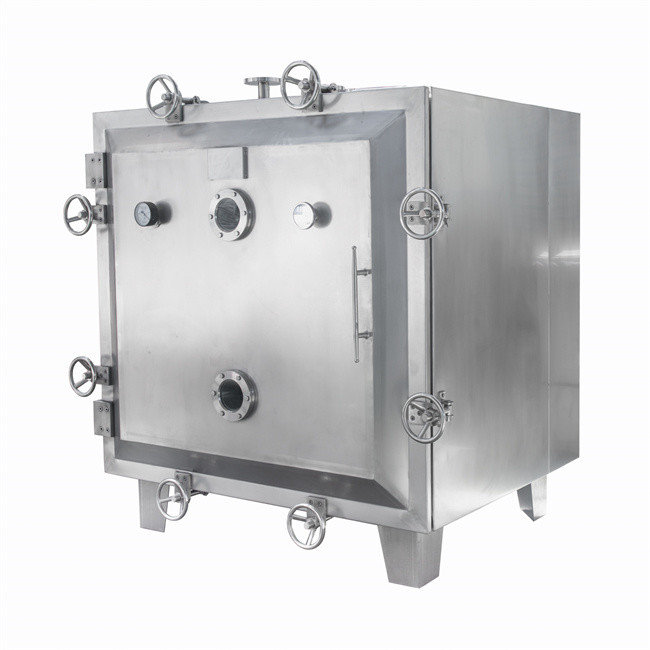

Product Description: CT-C series Industrial Drying Oven Machine
Industrial Tray Dryer With Good Price Spice Drying Machine Oven
Introduction:
Nearly all hot air cycle within baker, high heating efficiency,
energy saving.
Utilizing forced heat air cycle within baker, without air
separating plate, material can be dried uniformly. vapor, heat
water, powder, FRI all can be used as heating resources.
Low noise, steady operation; temperature auto adjustment; easy
access to temperature control, repair and maintenance.
Various application; all kinds of materials drying; one of most
common drying equipment.
Feature:
Heating source: Vapor, Heat conductive oil, hot water, electric
heating pipe, FRI etc.
Operation temperature: Vapor heating ambient temperature ~140℃, Max
150 ℃.
Electric, FRI, ambient temperature~350 ℃.
Auto-control system and computer control system as option.
Common vapor pressure 0.2~0.8MPa.
Electro-heating (type 1)15kw.
Special requirements should be indicated while ordering.
No standard baker can be produced based on process parameter.
Operation ambient temperature exceed 140 ℃ or less than 60 ℃ should
be marked out while ordering.
Bake vehicle and tray's dimension are standard, changeable.
Bake tray dimension:460×640×45mm
Application:
Heat wind cycle baker can be used as drier of medicine, chemistry,
food, agricultural and sideline products, sea food, light and heavy
industries, such ad raw material medicine, Chinese herb, Chinese
herb pill, extractum, powder, electuary. packing bottle, dye,
paint, dehydration vegetable, fruit and nut, banger, plastic epoxy
and components, bake paint etc.
Technical Parameter
No. |
Model | Field standard model | Technical parameter | | | | Evaporate area(m3) |
Effective volume
(m3) |
Drying
capacity
(kg/batch) |
radiator area(m3) | Steam consumption on(kg/h) |
Electrical Heater power(kw) | Fan volume (m3/h) | Fan power (kw) | | 1 | CT-C-O | RXH-7-C | 7.1 | 1.3 | 60 | 15 | 15 | 6-9 | 4510 | 0.45 | | 2 | CT-C-I | R×H-14-C | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 4510 | 0.45 | | 3 | CT-C-II | R×H-27-C | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45×2 | | 4 | CT-C-IIA | R×H-27-C | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45×2 | | 5 | CT-C-III | R×H-41-C | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | | 6 | CT-C-IIIA | R×H-41-C | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | | 7 | CT-C-IV | R×H-54-C | 56.5 | 10.3 | 480 | 96 | 80 | 60 | 18040 | 0.45×4 | | 8 | CT-I | R×H-14-B | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 1414 | 1.1 | | 9 | CT-II | R×H-27-B | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 5230 | 1.1 | | 10 | CT-III | R×H-41-B | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 9800 | 2.2 | | 11 | CT-IV | R×H-54-B | 56.5 | 10.3 | 480 | 96 | 80 | 60 | 9800 | 2.2 |
|
|
Our Services & Strength
* We provide pre-sales service in various forms, making investment
budget, manufacturing, planning, so that customers can make a
reasonable plan with less cost.* We will first check customers' goods and goods size, then we will
recommend suitable machine to meet customers' requirement.
* We will recommend and offer machine according to customers' use
and purchase budget.
Q: Are you a factory or trading company?
A: We are a factory with 20years professional experience which in
Jiangyin City, South Jiangsu China.
Q: Do you offer free samples?
A: Normally, samples will be charged and shipping by freight
collect. Special for some stock items, after discussed, samples
willbe free and freight cost paid before shipping.
Q: What is the delivery time of samples?
A: About 1-3days with our neutral package. It will be based on
discussed if special design or requirement.
Q: Do you have OEN/ODM service?
A: Yes, we have more than 20years ODM/OEM service. We will discuss
with our customers all details design according their requirements.
Q: What is term of delivery?
A: CIF/FOB/EXW/DDP/DDU...
Q: Do you have after sales support?
A: Yes, we will keep tightly contact when we cooperate.
Support technical advice as always when you need. No time limit.
Also video advise of use and instruction is together with goods
when shipping.
Actually, our products with very well 5stars comments by our
customers, when they use one year or even though 2 years passed.
