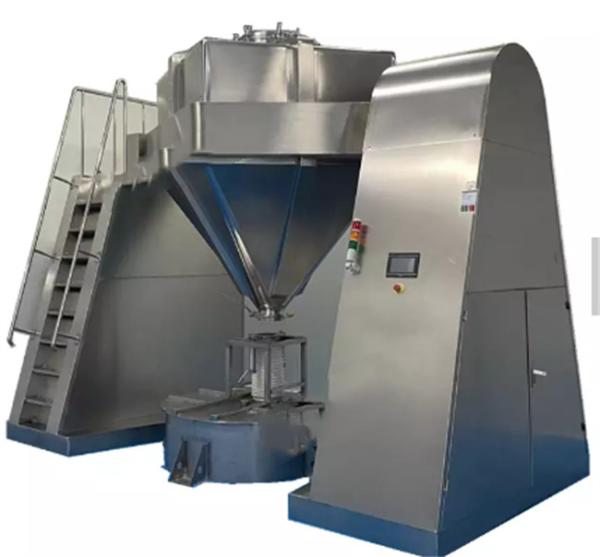

FZH Bin Blender/ Square cone blender is mainly used for blending
granules and granules, powder and powder, granules and powder in
solid dosage production. The equipment features steady running,
stable structure, large capacity and high mixing evenness. It is
the ideal in pharmaceutical factory for final blending. And it is
also widely used in food and chemical industry.
Work principle of Square cone blender:
This equipment consists of machine frame, drive system, control
system, and blending hopper, etc. When working, first load the
material into bin and then lock the bin cover. Set the blending
time, blending speed, and start the control system, the blending
process begins. When reaching the set blending time, the equipment
will stop automatically, and the blending process is finished.
Features of Square cone blender:
1. Intelligent PLC control system, it is very easy to operate.
2. There is no dead corner inside the bin, so it is vey easy to
clean. And blending process in fully sealed condition, there is no
dust flying. It meets the GMP requirements.
3. The blending evenness can be 99% and loading coefficient can be
50%~80%
4. The blending speed is regulated by inverter. There is no
vibration when the machine starts or stops, so it is very steady.
5. Discharge butterfly valve has special device for avoiding
misoperation, and it is detachable and easy to clean.
Technical parameters
| Model | Rotary speed (rpm) | L | Max. loading volume (L) | Max. loading capacity (Kg) | Total power (Kw) | Weight (Kg) | | FZH-400 | 3-20 | 400 | 320 | 200 | 2.2 | 600 | | FZH-600 | 3-20 | 600 | 480 | 300 | 3 | 700 | | FZH-800 | 3-20 | 800 | 640 | 400 | 3 | 800 | | FZH-1000 | 3-15 | 1000 | 800 | 500 | 4 | 1000 | | FZH-1200 | 3-15 | 1200 | 960 | 600 | 4 | 1200 | | FZH-1500 | 3-15 | 1500 | 1200 | 750 | 5.5 | 1500 | | FZH-2000 | 3-15 | 2000 | 1600 | 1000 | 5.5 | 2000 | | FZH-3000 | 2-10 | 3000 | 2400 | 1500 | 7.5 | 2900 | | FZH-4000 | 2-10 | 4000 | 3200 | 2000 | 11 | 3500 | | FZH-5000 | 3-8 | 5000 | 4000 | 2500 | 11 | 4000 | | FZH-6000 | 3-8 | 6000 | 4800 | 3000 | 11 | 5200 | | FZH-8000 | 1-6 | 8000 | 6400 | 4000 | 15 | 6300 | | FZH-10000 | 1-6 | 10000 | 8000 | 5000 | 15 | 7500 |
|
