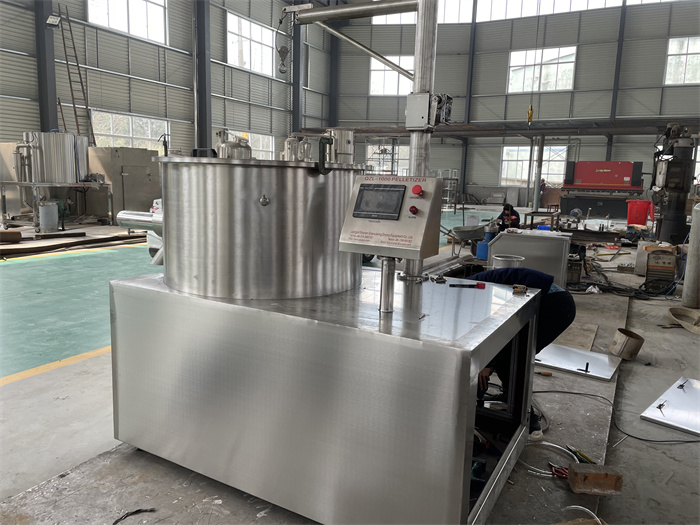

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer

Ask Lasest Price
Brand Name :	SNYNXN
Model Number :	QZL 700
Certification :	CE ISO GMP
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 sets / year
Delivery Time :	IN 50 DAYS

Add to Cart

Product Details
Company Profile

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer

Product Description Pharmaceutical Pelletizer Machine

Lab Scale Pharmaceutical Pelletizer Machine Western Medicine Pelletizer Chinese Medicine Pelletizer

Main Features

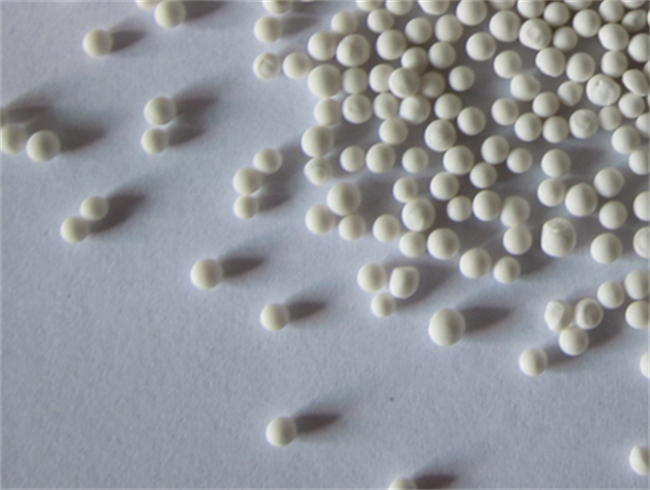

1. Produce pellet size between 0.5~2.0mm
2. Process long granule becomes pellet.
3. Simple operation & effective operation time

Applications
With the special design of rotor structure, the machine makes various wet grains into the perfect ball shape pellets. It is the desired equipment for making the capsules and pills of traditional Chinese medicine.

1. Pharmaceutical, Food Industries 2. Cosmetic, Dyestuff, Coloring Industries 3. Ceramic Industry

Principle
This machine makes damp granule into beautiful pellet by setting rotating centrifugal disk, blower, and pneumatic nozzle. Feed damp granule into rotating centrifugal disk, start fan then start rotating centrifugal disk. It can make the damp granule in float and circle by the air from gap, rotating centrifugal strength and itself gravity, appear circle rope-turning movement and become high-degree ball shape pellet.

Technical parameters

spec	unit	φ230	φ400	φ700	φ1000	φ1300
power	Kw	0.75	2.2	3.7	5.5	7.5
capacity	Kg/h	2~4	10-50	40-80	70-200	100-300

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer

Pre-sales service

1) Professional advice and rich experience help to choose machine.

2) Inquiry and consulting support

3) View our factory

After-sales service

1) Training how to install and use the machine

2) Engineers available to service machinery overseas.

3) one year warranty,whole life service.

Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).
