    YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator

    Ask Lasest Price
    Brand Name : SNYNXN
    Model Number : YK 160
    Certification : CE ISO GMP
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets / year
    Delivery Time : IN 60 DAYS
    • Product Details
    • Company Profile

    YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator

    Description of YK Series Swing Pelletizer Machine

    YK Pharmaceutical Pelleting Granules Making Machine Swing Type Fish Feed Oscillating Granulator For Herbal Granule

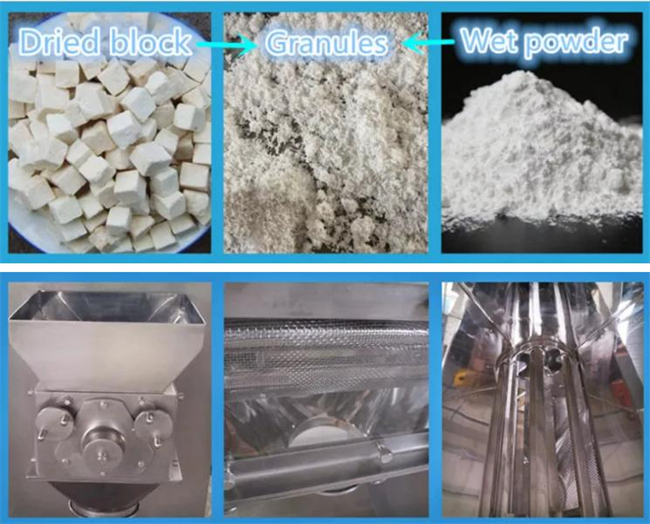

    The oscillating granulator can make particles from a mixture of powders, or from lumpy dry matter into the desired particles. It is suitable for small batch production in pharmaceutical, chemical, food, scientific research units, laboratories, hospitals and small health care products factories It has a wide range of applications, uniform particles produced, no need for particle screening, thereby increasing production efficiency, reducing production costs and increasing production. Compared with powder, pellets are easy to take, store and transport. The machine is driven by mechanical transmission to swing the cylinder back and forth. The material is extruded into particles from the screen. As long as the screen mesh of different numbers is replaced, the coarse and fine particles are made. The drum does not need to be disassembled, the screen is easy to disassemble and is very light. The cleaning parts are only part of the granulating cavity, and the cleaning is very convenient. The particles made by the system contain less powder and particle size, convenient operation, simple control and long service life.

    Working method:

    The swing granulator is a mechanical drive. Under the action of friction, the drum rotates, and powdery materials are discharged from the screen hole and sent out of the machine under the action of positive and reverse rotation of the rotating drum. The particle size and density can be controlled to a certain extent by adjusting the tightness of the screen and the speed of the drum

    Features:

    1.This Oscillating granulating machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be used to crush agglomerate materials into small granules directly.
    2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.
    3. It is not suitable for solid, fluid medium, paste or pulverizing. 4.Its mesh number of sieve should be prepared by users, according to the size of granule.

    Main Technical Specification:

    YK-Series Vibrating Granulator
    ModelYK60YK90YK160
    Capacity20~30kg/h50~100kg/h200~300kg/h
    Cycle Times46 time/min50 time/min
    55 time/min
    Feed Port
    209*212mm300*280mm408*380mm
    Motor0.55kw0.75kw2.2kw
    Dia. Of Barrel
    60mm
    90mm160mm
    Rang of Wave>360°>360°>360°
    Dimensions460x550x570mm460x750x840mm950x560x1240mm
    Weight55kg150kg360kg


    YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator

    Jiangyin SNYNXN Granulating Drying Equipment Co., Ltd was established in 2007, combining R&D, production, foreign trade and professional service of pharmaceutical machinery as an original manufacturer. professionally on the manufacturing of all kinds of Drying Equipment, granulating machine, mixer, dryer, coal mill, etc. We have not only a professional design institute and a experienced production team, but also complete and scientific quality control system. Our products can fully be in conformity with the national and industrial standards.
