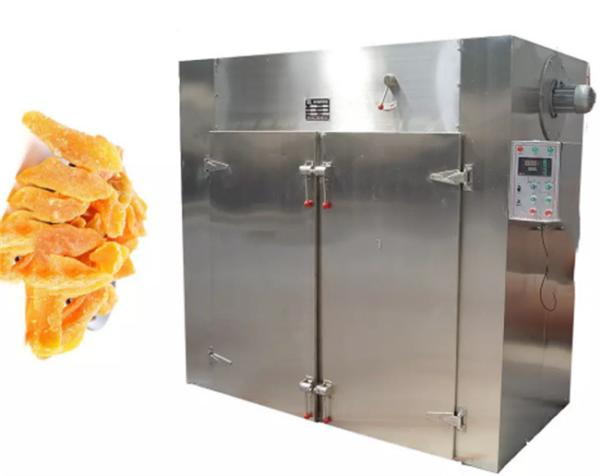

Product Description: CT-C series Industrial Drying Oven Machine
Industrial Hot Air Circulation Fruit Dehydrator Machine Turmeric
Food Fruit Fish Meat CT Hot Air Drying Oven
CT-C series hot air circulation drying oven uses a low noise and
high temperature proof axial flow blower and an automatic
temperature control system. The whole circulation system is the
fully enclosed to make that the heat efficiency of the drying oven
increases from 37% of the traditional drying oven to 35-45% of the
present one. The highest heat efficiency can reach 50%. The
successful design of CT-C hot air circulation drying oven makes
that the hot air circulation drying oven in our country catch the
advanced level both at home and abroad. In order to save a large
quantity of the energy in out country, in order to enhance the
economic results of the enterprises, in 1990, the medicine
management bureau of the State issued the industry standard and the
uniform type is RXH.
Application:
it is widely used in food processing, such as purple yam,sweet
potato,pumpkin slice,mango,apple,banana,data,
pineapple,kiwi berry,strawberry,ginger,onion,carrot,garlic
,ginseng,mushroom,red ginseng,honysuckle,etc
Advantages:
1.Energy saving
Most of the air is circulating inside the drying chamber ,energy
saving and high efficiency
2.Healthy working condition
The inside surface is lined with stainless steel and full welded.
The sealed working condition can make sure sanitary
working condition
3.Uniform drying temperature
Air distributor is fixed at each side of the drying chamber to make
sure uniform air flow. So the temperature
difference between the top and bottom is less than 2 °C. So the raw
material can evenly dried.
4.Easy temperature control
The drying temperature can be easily controlled by button
5.Low noise
Heat resisting and low noise circulation fan is combined
6.Large temperature range and automatic heat preservation system
You can set temperature at any data between room temperature and
260 degrees. And oven heated system will
automatically maintain the temperature once it is heated to the one
you set , moreover no power consumption at
this time .
7.Various heating source: electricity,steam,gas etc.
Technical Parameter
No. |
Model | Field standard model | Technical parameter | | | | Evaporate area(m3) |
Effective volume
(m3) |
Drying
capacity
(kg/batch) |
radiator area(m3) | Steam consumption on(kg/h) |
Electrical Heater power(kw) | Fan volume (m3/h) | Fan power (kw) | | 1 | CT-C-O | RXH-7-C | 7.1 | 1.3 | 60 | 15 | 15 | 6-9 | 4510 | 0.45 | | 2 | CT-C-I | R×H-14-C | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 4510 | 0.45 | | 3 | CT-C-II | R×H-27-C | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45×2 | | 4 | CT-C-IIA | R×H-27-C | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45×2 | | 5 | CT-C-III | R×H-41-C | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | | 6 | CT-C-IIIA | R×H-41-C | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | | 7 | CT-C-IV | R×H-54-C | 56.5 | 10.3 | 480 | 96 | 80 | 60 | 18040 | 0.45×4 | | 8 | CT-I | R×H-14-B | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 1414 | 1.1 | | 9 | CT-II | R×H-27-B | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 5230 | 1.1 | | 10 | CT-III | R×H-41-B | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 9800 | 2.2 | | 11 | CT-IV | R×H-54-B | 56.5 | 10.3 | 480 | 96 | 80 | 60 | 9800 | 2.2 |
|
|
After Sales Service
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of
troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week.
Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can
go to door to support.
