Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine

JIANGYIN SNYNXN GRANULATING DRYING EQUIPMENT CO.,LTD
Contact Now
    Buy cheap Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine from wholesalers

    Buy cheap Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine from wholesalers
    • Buy cheap Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine from wholesalers
    • Buy cheap Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine from wholesalers
    • Buy cheap Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine from wholesalers
    • Buy cheap Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine from wholesalers

    Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine

    Ask Lasest Price
    Brand Name : SNYNXN
    Model Number : SYH 400
    Certification : CE ISO GMP
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets / year
    Delivery Time : IN 30 DAYS
    • Product Details
    • Company Profile

    Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine

    Product Description Chemical Industry Food Dry Mixing 3 Dimension Swing Mixer
    Chemical Industry Food Whey Protein Dry Mixing 3 Dimension Swing Mixer 3D Mix Machine For Pharmacy Albumen Powder

    Product Application

    The 3D Motion Mixer / Blender / Mixing Machine is suitable for high evenness mixing of materials in such industries as chemical industry, medicine, battery, metallurgy, food and scientific research units.

    Principle

    When it works, the mixing machine is provided with three-dimensional movement, and carries out revolution and rotation. The mixing machine has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.

    Main Features

    1. The mixing machine is provided with three-dimensional movement so that the materials complete the process of mutual mixing from the agglomeration status to dispersion status under the actions of flowing , shearing, translational movement and dispersion, even mixing of materials is ensured and the evenness reaches 99.9%. In ordinary mixers, the materials only make simple dispersion and agglomeration movement in the vessel, which is featured by low efficiency and bad mixing quality.

    2. With short mixing time and high efficiency, the effective loading rate of the vessel reaches 80%. (The rate of ordinary mixers in only 40%.)

    3. SYH Model 3d Motion Mixer / Blender / Mixing Machine height is low and does not have special requirements for plants, so that investment in basic construction is reduced.

    4. The mixing barrel and machine body driving part can adopt partition installation to meet GMP requirement.

    5. For the SYH mixing vessels of various shapes can be placed in the mixing barrel for mixing with convenient use.

    6. Stepless speed adjustment can be realized to facilitate material loading and unloading.

    7. It is featured by long service life and low noise.

    8. Vacuum feeding and lifting machine feeding are avaliable.

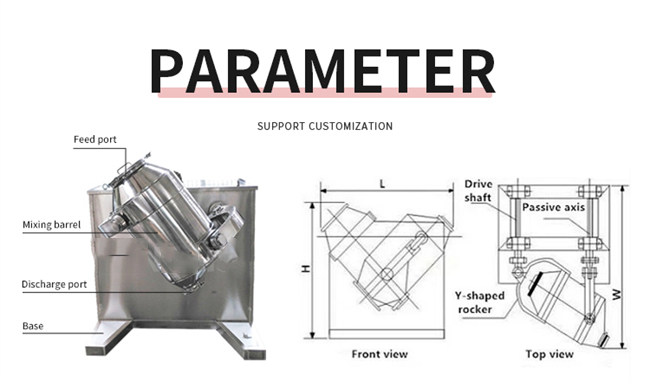

    Technical Parameters

    Model
    Mixing
    Barrel
    Volume
    (L)
    Maximum
    Loading
    Coefficient
    (%)
    Maximum
    Material
    Load
    (kg)
    Voltage
    (V.Hz)
    Total
    Power
    (Kw)
    Speed
    (rpm)
    Weight
    (kg)
    SYH-2
    2
    80
    0.8
    380/50
    0.18
    2-12
    15
    SYH-17
    17
    80
    6.8
    380/50
    0.75
    2-12
    80
    SYH-30
    30
    80
    12
    380/50
    0.75
    2-12
    90
    SYH-60
    60
    80
    24
    380/50
    1.1
    2-12
    150
    SYH-100
    100
    80
    40
    380/50
    1.5
    2-12
    220
    SYH-200
    200
    80
    80
    380/50
    2.2
    2-8
    400
    SYH-400
    400
    80
    160
    380/50
    4
    2-8
    500
    SYH-500
    500
    80
    200
    380/50
    5.5
    2-8
    750
    SYH-600
    600
    80
    240
    380/50
    5.5
    2-8
    900
    SYH-800
    800
    80
    320
    380/50
    7.5
    2-8
    1100
    SYH-1000
    1000
    80
    400
    380/50
    7.5
    2-8
    1200
    SYH-1500
    1500
    80
    600
    380/50
    11
    2-8
    1500
    SYH-2000
    2000
    80
    800
    380/50
    15
    2-8
    1700


    Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine

    FAQ

    One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
    1. Can your machine meet our need well?
    We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
    2. Are you a factory or a trading company?
    We are the manufacturer, and have been in industry for more than 15 years.
    3. What's your payment way?
    T/T by our bank account directly, or by MadeinChina or Alibaba's trade assurance service, or by the West Union, or in cash.
    4. How can you ensure the machine's quality after we put the order?
    Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by
    yourself, or by the third party inspection organization contacted by your side.
    5. We are afraid you won't deliver us the machine after we pay you the money.
    Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
    6. Why choose your company?
    We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
