Description of Three Dimensional 3D Motion Mixer

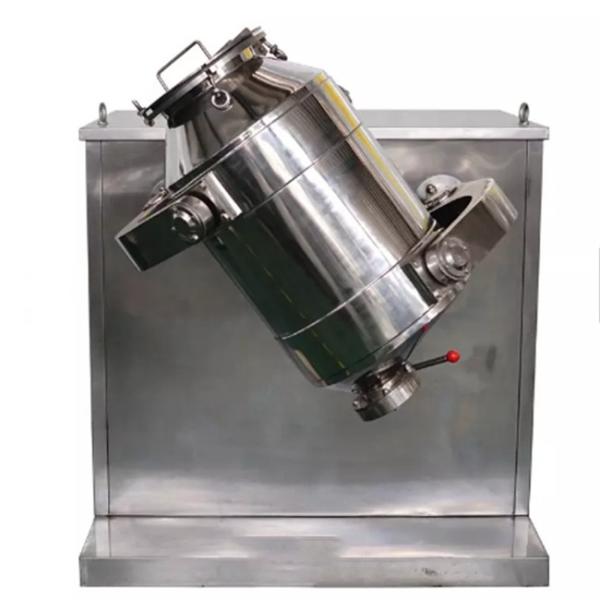

SYH Series Three Dimensional Motions Mixer For Foodstuff Industry

The SYH 10/20/30/50/100/200/300/400/500/800 Model 3d Motion Mixer / Blender / Mixing Machine is suitable for high evenness mixing of materials in such industries as chemical industry, medicine, battery, metallurgy, food and scientific research units.

Principle

When it works, the mixing machine is provided with three-dimensional movement, and carries out revolution and rotation. The mixing machine has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.

Main Features:

1. The mixing machine is provided with three-dimensional movement so that the materials complete the process of mutual mixing from the agglomeration status to dispersion status under the actions of flowing , shearing, translational movement and dispersion, even mixing of materials is ensured and the evenness reaches 99.9%. In ordinary mixers, the materials only make simple dispersion and agglomeration movement in the vessel, which is featured by low efficiency and bad mixing quality.

2. With short mixing time and high efficiency, the effective loading rate of the vessel reaches 80%. (The rate of ordinary mixers in only 40%.)

3. SBH SYH SWH 10/20/30/50/100/200/300/400/500/800 Model 3d Motion Mixer / Blender / Mixing Machine is low and does not have special requirements for plants, so that investment in basic construction is reduced.

4. The mixing barrel and machine body driving part can adopt partition installation to meet GMP requirement.
5. For the SBH SYH SWH 10/20/30/50/100/200/300/400/500/800 Model 3d Motion Mixer / Blender / Mixing Machine , mixing vessels of various shapes can be placed in the mixing barrel for mixing with convenient use.

6. Stepless speed adjustment can be realized to facilitate material loading and unloading.
7. It is featured by long service life and low noise.
8. Vacuum feeding and lifting machine feeding are avaliable.

Specification

Model	Mixing Barrel Volume (L)	Maximum Loading Coefficient (%)	Maximum Material Load (kg)	Voltage (V.Hz)	Total Power (Kw)	Speed (rpm)	Weight (kg)
SYH-2	2	80	0.8	380/50	0.18	2-12	15
SYH-17	17	80	6.8	380/50	0.75	2-12	80
SYH-30	30	80	12	380/50	0.75	2-12	90
SYH-60	60	80	24	380/50	1.1	2-12	150
SYH-100	100	80	40	380/50	1.5	2-12	220
SYH-200	200	80	80	380/50	2.2	2-8	400
SYH-400	400	80	160	380/50	4	2-8	500
SYH-500	500	80	200	380/50	5.5	2-8	750
SYH-600	600	80	240	380/50	5.5	2-8	900
SYH-800	800	80	320	380/50	7.5	2-8	1100
SYH-1000	1000	80	400	380/50	7.5	2-8	1200
SYH-1500	1500	80	600	380/50	11	2-8	1500
SYH-2000	2000	80	800	380/50	15	2-8	1700
