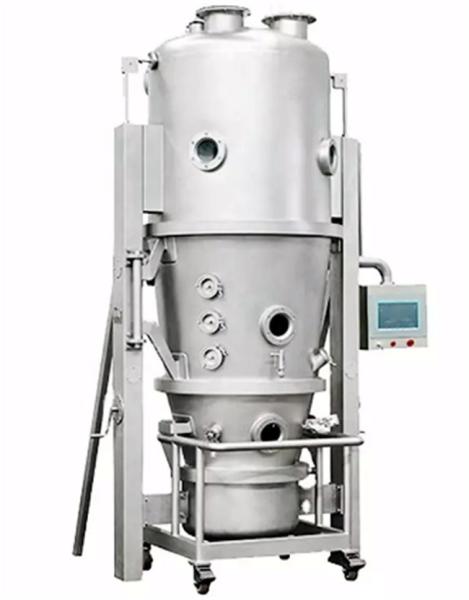

CE Certified New High Quality Fluidized Bed Dryer Pharmaceutical
Used(FG)
FG series vertical fluid bed granulating drier is that material
powder particles, under the annular fluidized state in the
container (fluidized bed), are preheated and mingled by heated air
which has been purified in advance. The adhesive solution will be
atomized which combines some particles, resulting in adhesive
granules. Moisture in granules will be evaporated because the
heated air ceaselessly dries the particles and then the adhesive
will be solidified. This is a repeated process in which the ideal
and homogeneous micro porous spherical particles will be produced.
1. Improve fluidity and decrease the flying dust through powder
granulation.
2. Improve the solubility through powder granulation.
3. Blending-granulating-drying-three steps are completed in one
machine (one-step granulation).
4. Anti-static filtering material is used to secure its operation.
5. Multi fluid airbrush embedded in binder atomizer makes equal
particles which greatly improve the qualified rate of finished
products.
6. No dead band in equipment makes it easier to load and unload
material and to wash.
1. Drug granulation and tablet coating
Granulation: press tablet and granules, instant granules and
granules within capsules. Coating: granules, pill protection layer,
prepared colors, slow releasing, film and other enteric coating.
2. Particles in food industry and coating: granulated sugar,
coffee, cocoa particles, cream, juice powder, processed amino acid,
condiment and puffed food.
3. Particles for pesticide, paint pigments and dye granulating.
4. powdery, granular and blocky material drying.
| Model | FG60 |
| Container | Volume (L) | 220 |
| Diameter (mm) | 1000 |
| Productive Capacity | Min. (kg) | 30 |
| Max. (kg) | 70 |
| Fan | Air Volume (m3/h) | 3000 |
| Power (kw) | 11 |
| Electricity Heater Power(kw) | 54 |
| Weight of Main Body (kg) | 1000 |
| Overall Size (L×W×H) (m) | 1.85x1.25x3.0 |
| Temperature (ºC) | Adjustable from room temperature to 120ºC |
| Working Time (min) | According the characteristic of material from 45 to 90 |
| Rate of Obtaining Products (%) | >=99 |
| Noise (Db) (A) | Fan is separated with main machine; the noise is less than 75dB |
