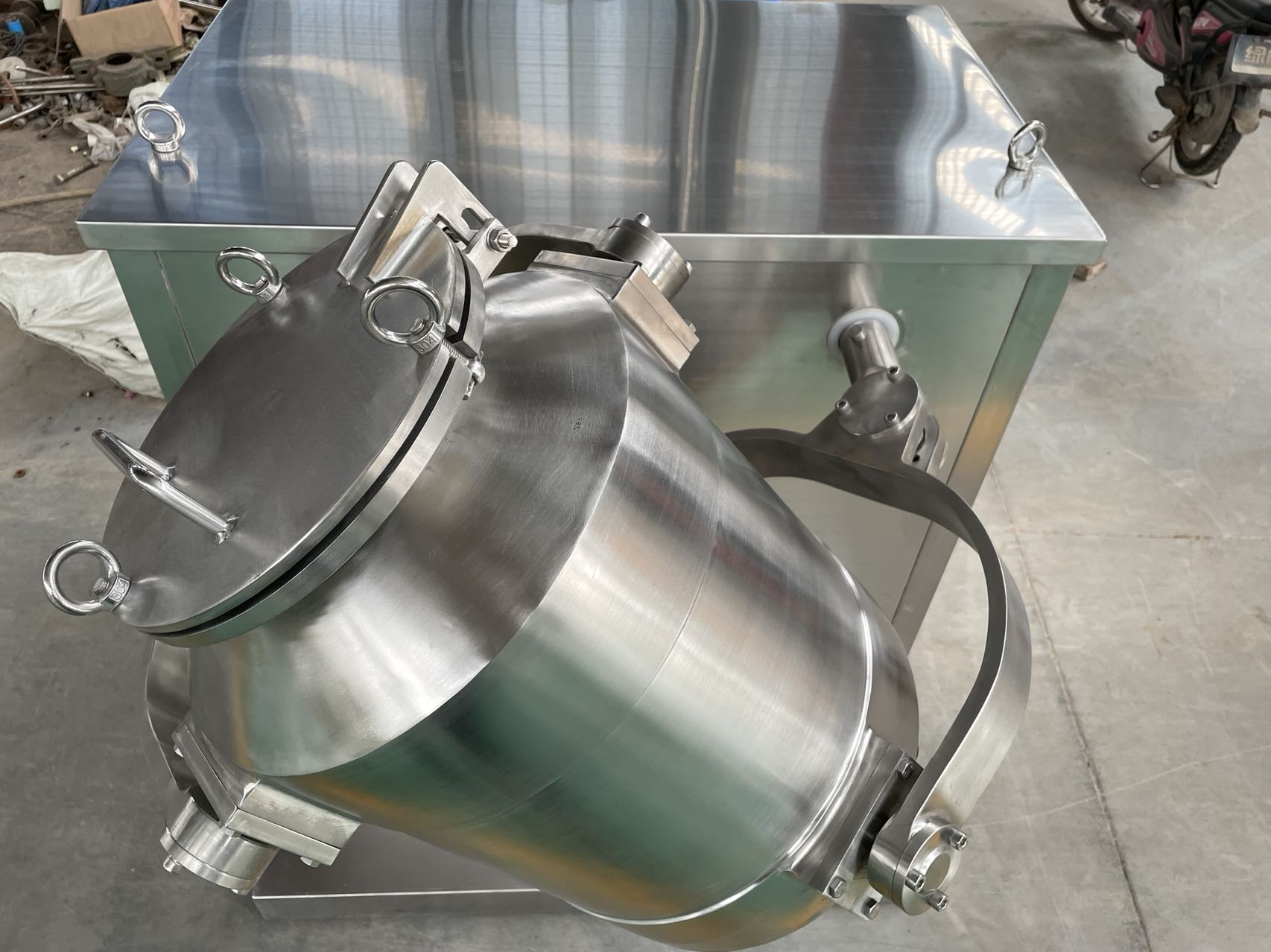

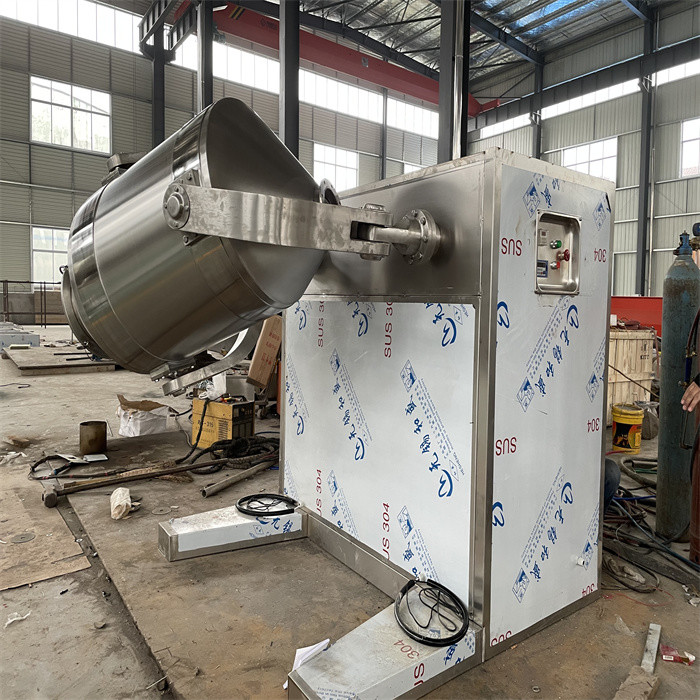

Name: 3D movement Industrial Mixing Drum Pharmaceutical Mixing
Machine.
Features
Because the mixing drum has multi directional motion, it makes raw
material inside the drum has many cross-mixing points, therefore
the mixing effect is good. Its degree of uniformity may be over
99.9%. Its Max loading efficiency may be 0.9 (The loading
efficiency of ordinary mixer is 0.4~0.6). Its mixing time is short
and its efficiency is high.
The design of mixing drum is unique. Its inner wall is polished
finely. Its advantages are no dead corner, no pollution to raw
material, convenient in discharge, easy in clean and so on.
Characteristics:
- Designed with three stainless steel interlayer, it helps for
accurate control of the temperature of medicine liquid.
- Typically designed paddle ensure agitating quickly and mixing
uniformly.
- Convenience in installation and cleaning. Easy and quick
production.
Technical parameters
| type | SYH-5 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1500 |
Material barrel volume (L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 |
Max loading volume (L) | 4 | 80 | 150 | 300 | 450 | 600 | 750 | 1200 |
Max loading weight (kg) | 3 | 80 | 150 | 200 | 300 | 400 | 500 | 750 |
Spindle rotation speed (r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 | 10 |
Motor power (kw) | 0.37 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 11 |
Overall dimensions (mm) | 600×1000
×1000 | 1200×1800
×1500 | 1300×1600
×1500 | 1500×2200 ×1500 | 1850×2500 ×1650 | 1900×2400 ×2100 | 1950×2500 ×2400 | 2600×2500 ×2350 |
Weight (kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 | 2500 |
Company profile
Division I professional production of various kinds of
pharmaceutical machinery and drying equipment, our products sell
well in over 20 provinces and cities, and exported to America,
Mexico, Spain, Singapore, Russia, belarus, Egypt, South Korea,
Malaysia, the Philippines, the united Arab emirates, Thailand,
Vietnam, Pakistan, India, Iran, South Africa, Algeria, Syria,
Mongolia, Bangladesh and other countries. The company is constantly
updating and developing pharmaceutical machinery, chemical
equipment, drying equipment, mixing equipment, granulator, coater
and sewage treatment equipment and other products. With strict
testing means and a complete set of scientific management
procedures, and through the ISO9001 international quality system
certification, product quality has reached the advanced level at
home and abroad, pharmaceutical machinery products in line with
"GMP standard". Our company tenet: product quality to win with
excellence, sales and service to honesty, the contract to honor the
letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types
of machinery,
Q: Payment of terms:
A: Acceptable payment terms: T/T, L/C, Cash after signing the
contract, firstdeposit 30% of total as prepayment, and rest 70%
after approvement but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every
set of our machines after shipment have guarantee period 15 months,
during warranty period we will provide technician debugging onsite,
or free spare parts caused by the malfunction of machines. We
guarantee we reply the user's bewilderment within 24 hrs after
receive notification.
Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case.
Standerd for epxort packing.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the
tecnnology and choose model of machines, and give feasible advice
of each material. Secondly visit our factory to do FAT before
shipment, give us your advice and we modify the machine if not meet
the user's satisfaction. Lastly, we will dispatch at least 1
experienced and responsible technician to go abroad for
commissioning and train the operators. lf no need onsite
commissioning, we provide video guidance.
Q: Which information do you require before you could choose model
subsequently?
A: We need to know the information as below:
What is your material name?
What is the initial moisture percentage before drying?
What is the residual moisture percentage after drying?
What is the heating temperature your material can undertake during
drying process?
What is the heating source, steam, electricity, natural gas or
others?
Last but important, what is capacity needed as how many kgs/h
before drying or after drying?
