    GMP Large Industrial Milk Spray Dryer Machine For Milk Instant Coffee Juice Powder

    Ask Lasest Price
    Brand Name : SNYNXN
    Model Number : GLP-150
    Certification : CE ISO GMP
    Price : Negotaible
    Payment Terms : T/T, L/C
    Supply Ability : 100 set/year
    Delivery Time : within 60 days
    • Product Details
    • Company Profile

    GMP Large Industrial Milk Spray Dryer Machine For Milk Instant Coffee Juice Powder

    Description: Large Industrial Spray Dryer


    2022 New Design Large Industrial Spray Dryer For Milk , Instant Coffee, Juice Powders, Additives Drying


    Brief introduction: In this machine, the fully-closed structure is adopted, all parts are made of stainless steel, and there is
    the 3-stage purifying device. After the filtering, the air meets the 100000-grade standard. There are cooling devices for the
    reactor, the temperature of the container wall is less than 80℃, and even the raw products are stayed on the wall, will not be burned. The powder rate is as high as more than 95%, and there is no powders mixing or wall hanging.

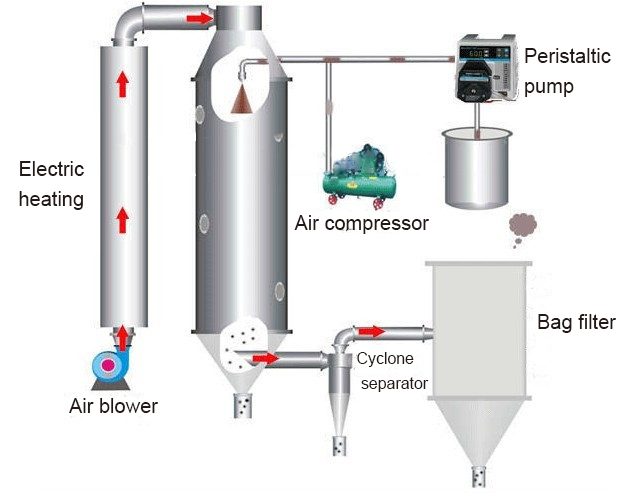

    Working principle:In this machine, the centrifugal spraying and drying technology is adopted. With the high-speed centrifugal atomizer, after the spraying, powders are atomized, can be contacted with hot air completely, and the drying is completed instantly.

    Features:

    1.With the 3-stage purifying device, the air meets the 100000-grade standard.
    2.There are cooling devices for the reactor, the temperature of the container wall is less than 80℃, and even the raw products are stayed on the wall, will not be burned.
    3.With the flushing device, the machine can be applied for the drying for many kinds of products.
    4.The wet-type dust collecting is adopted, which meets the environment protecting standard.
    5.There is the air cleaning device.
    6.In the atomizer, the variable-frequency speed regulating is equipped.
    7.There is the touch screen and the PLC.
    8.CIP

    Technical Parameters

    Model
    GLP5
    GLP25
    GLP50GLP
    100

    GLP150

    GLP200
    Inlet temperature
    140°C-350°C
    Adjustable
    140°C-350°C
    Adjustable
    140°C-350°C
    Adjustable
    140°C-350°C
    Adjustable
    140°C-350°C
    Adjustable
    140°C-350°C
    Adjustable
    Outlet temperautre
    80°C -90°C
    80°C -90°C
    80°C -90°C
    80°C -90°C
    80°C -90°C
    80°C -90°C
    Maximum water evaporation
    5kg/h
    25kg/h
    50kg/h
    100kg/h
    150kg/h
    200kg/h
    Maximum speed (r.m.p)
    25000
    22000
    21500
    18000
    18000
    16000
    Heating rouse
    Electric
    Steam+Electric
    Steam+Electric/gasoline/coal gas/hot-blast stove
    Heating power
    8KW
    31.5KW
    60KW
    81KW
    99KW
    ---
    Dimension
    1.6*1.1*1.75m
    4*2.7*4.5m
    4.5*2.8*5.5m
    5.5*4*7m
    7*5.5*7.2m
    7.5*6*8m
    Lifting height of nozzle
    -----
    2.5m
    2.5m
    3.2m
    3.2m
    3.2m
    Dry powder recovery rate

    ≥95%

    ≥95%

    ≥95%

    ≥95%

    ≥95%

    ≥95%


    GMP Large Industrial Milk Spray Dryer Machine For Milk Instant Coffee Juice Powder

    Our Factory

    SNYNXN is specialized in design, development, manufacture and sale of pharmaceutical, food, chemical extracting and drying equipments for more than 20 years. Our products include Dryer, Granulator, Mixer, Crusher, Evaporator and distiller etc.

    Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality medical machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products.

    Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products.

    Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.


    FAQ

    Q: What information should be provided in order to get a proposal or quotation?

    A: Our spray dryer can be customerized. Before we can work out a detailed quotation, we have to know the following information:


    1) What liquid material are you going to dry? Moisture type and viscosity ?

    2) Moisture content before drying? Target moisture content of dried powder?

    3) Required powder size distribution ?

    4) Your recommended drying temperature?

    5) Heat souce? Steam or electricity

    6) Construction material ? SS304/SS316L


    Q: How the dryer will be delivered ?

    A: The dryer is packed in plywood box for shipping


    Q: Do you provide free drying test?

    A: Yes. We have pilot plant for free drying test.
