    1200L Post Bin Blender Pharmaceutical Stainless Steel IBC Container Powder Movable Tank

    Ask Lasest Price
    Brand Name : SNYNXN
    Model Number : HTD 800
    Certification : CE ISO GMP
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets / year
    Delivery Time : IN 20 DAYS
    • Product Details
    • Company Profile

    1200L Post Bin Blender Pharmaceutical Stainless Steel IBC Container Powder Movable Tank

    Description of Pharmaceutical Lifting System Blending Equipment

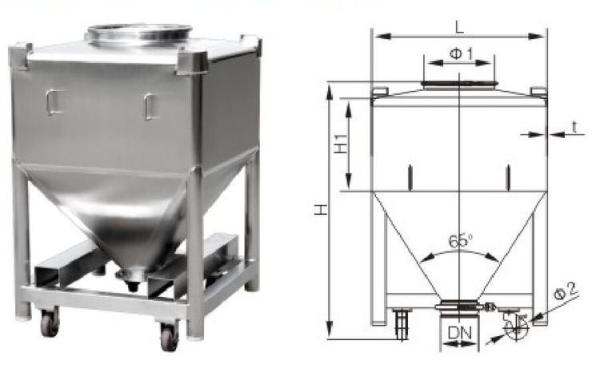

    Up To 1200L Pharma Bin For Bin Blender Stainless Steel IBC Container Powder Movable Tank

    This equipment can execute automatically raising,clamping,blending and lowering tasks. One main machine can be configured with various bin specifications,so different batches and requirement for various blending can be satisfied, consequently it is considered as the ideal blending equipment in pharmaceutical industry. It is also widely used in chemical ,foodstuff industries,etc.

    Principle

    This equipment is composed of frame,rotating cage ;drive,lifting,brake,and control systems. When operating,firstly,load the bin in the rotating cage and press‘’confirm’’ key on the touch panel,the bin will be automatically raised in position and clamped.On reception of clamped signal by the sensors, the drive system starts blending task according to the set time and rotation speed. On reaching all the set parameters,the brake system operates automatically to stop the rotating cage to a horizontal position and the blending task is finished. Then,the lifting system works to lower the bin on the ground and on reaching that position,it stops automatically. Finally,data of this batch are printed. Move out the bin from the rotating cage to transfer it for the next process.

    Features

    Structural characteristics of this equipment are: the rotating cage is tilted 30 degree as compared to the rotation axis, the materials perform a double movement inside the bin: a constant and intense turnover following the frame rotation and also a relatively high tangential motion along the bin wall to realize an optimal blending effect and result in PLC, also infrared safety device and a device avoiding misoperation of butterfly valve are designed to ensure a fully automatic control and a safe production.

    All processes of the material are finished in a same container without frequent material transfer,charging and shift.Consequently,powder dust or cross pollution are effectively controlled to reduce material losses,and on the other hand,an effective control of material layers is achieved.

    Finally,the production process has been greatly optimized. SINO Series Bin Blenders comply entirely with requirements for medicine production.

    Technical Parameters:
    ModelHTD-300HTD-400HTD-600HTD-800
    Blending speed3-20rpm3-20rpm3-15rpm3-15rpm
    Net load150200300400
    Total power4.4KW5.2KW5.2KW7KW
    Machine weight900kg1000kg1300kg1600kg
    Rotation2150mm2250mm2500mm2600mm
    Ceiling height2800mm2800mm2800mm2800mm
    Rotation width2000mmm2100mm2400mm2500mm
    Overall dimension2457x1306x2300mm2555x1445x2400mm2663x1583x2500mm
    2800x1730x2500mm

    1200L Post Bin Blender Pharmaceutical Stainless Steel IBC Container Powder Movable Tank

    SNYNXN has been manufacturing, engineering and exporting various kinds of industrial dryers, mixers, granulators and impact mills since 2007 for a lot of satisfied customers.
    SNYNXN pay attention to detail and real production data is critical in the manufacturing of industrial machinery. An unique design for specific material is always made based on real production experiences or trial data.
    SNYNXN has experienced technicians who has been working in this field for more than 20 years as well as professional pilot plant. Free trial and material study are available for our customers.
    SNYNXN has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services.
    SNYNXN is always your reliable machinery supplier.
