Description of FL Series Fluidized Granulator And Dryer:
CE Approved High Efficiency FL-120 Fluid Bed Dryer And Granulator
* Pharmaceutical industry: tablet capsule, low sugar or no sugar
granules of Chinese medicine.
* Foodstuff, cocoa, coffee, milkpowder, juice of granules,
flavoring and so on.
* Other industries, peticide, feed chemical fertilizer, pigment,
dyestuff, and son on.
* Drying of powder or granular wet material.
* Coating: granules, pill protection layer, color preparedness,
sustained-release, film, enteric
Principle of work:
The powder granule in the container (fluization) appear in the
state of fluidization. It is preheated and mixed with clean and
heated air. At the same time the solution of adhesive solvent is
fogged and sprayed into the container. It makes some particles
become granulating that contains adhesive. Being of unceasing dry
through hot air, the moisture in the granulation is evaporated and
the adhesive is solidification. The process is carried out
continuously. Finally it forms ideal, uniform and porous granules.
Drug granulation and coating.
Granulation: tablet granule, granule for granule, capsule granule.
Coating: pellet, pill protective layer, color slow release, film,
enteric coating. Food granulation and coating
Fried sugar, coffee, cocoa powder, cream powder juice, amino acid,
seasoning, puffed food. Granulation of pesticides, pigments and
dyes. Powder, granule, block material drying.
Technical Data
| Capacity (Kg /batch) | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | 800-1000 |
| Scope of application for liquid(g/cm3) | <1.3 |
By client
|
| Material yield rate (%) | ≥99 |
| Qualified rate of end products (%) | ≥85 |
| Container volume (L) | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| Diameter r(mm) | 500 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Power of fan (Kw) | 3 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 |
| Power of supply liquid motor (Kw) | 0.37 |
| Pressure of steam (Mpa) | 0.4-0.6 |
| Consumption of steam (Kg/h) | 18 | 35 | 60 | 120 | 140 | 180 | 310 | 400 |
| Pressure of compressed air (Mpa) | 0.4-0.6 |
| Working temperature (℃) | Normal temperature -120℃ could adjust |
| Overall dimension of machine (L×W×H) | refer to installation drawing or customer’s room |
| |
| |
| |
| Standard wooden packing for sea shipping |

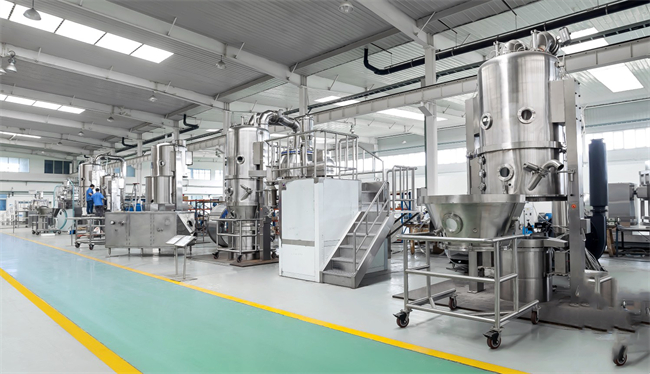

OUR FACTORY:
FAQ
Q: Delivery period:
A: Around 20-60 days, delivery perious will vary from different
types of machinery,
Q: Payment of terms:
A: Acceptable payment of terms: T/T, L/C, Cash after signing the
contract, firstdeposit 30% of total as prepayment,and rest 70%
after FAT but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new, and we design and
manufac-ture as per approbation by user; We guarantee every set of
our machine after shipment is have guarantee period 15 months,
during warranty period we will provide technician debuggingonsite,
or free spare parts caused by the malfunction of machines. We
guarantee we reply the user's bewilderment within 24 hrs after
receive noti-fication.
Q: Package of merchandise:
A: First pack with plastice membrane wrap on the surface of
machines,external we use plywood case, finall load in container.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the
tecnnology andchoose model and type of machines for users, and give
feasible advice of eachmaterial. Secondly we thank for you if you
visit our factory to do FAT before shipment,give us your advice and
we modify the machine if not meet the user's satisfac-tion. Last,
we will dispatch at least 1 experienced and responsible technician
togo to abroad for guide commissioning and train the operators. lf
no need onsitecommissioning, we provide video guidance.
Q: Which information do you require then you could choose model
subsequently?
A: We need to know the information as below:
What is your material name?
What is the initial moisture percentage before drying?
What is the residual moisture percentage after drying?
What is the heating temperature your material can undertake during
dryingprocess?
What is the heating source, steam, electricity, natural gas or
others?
Last but important, what is capacity how many kgs/h before drying
or after drying?
