Coconut Copra Fluid Bed Granulator Vibrating Fluidized Bed Dryer

Description of FL Series Fluid Bed Dryer Drying Machine

FL Series Fluid Bed Dryer/Drying Machine/Drying Equipment Coconut Copra Dryer Machine Vibrating Fluid Bed Dry

Working Principle of FL Fluid Bed Dryer

The Powder granule the container (fluidized bed) appear the state of fluidization. It is preheated and mixed with clean and heated air. At the same the solution of adhesive solvent is fogged and sprayed into the container. It makes the Same particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

FL Model Powder fluid bed granulator is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment. The machine is manufactured in accordance with JB20014-2004 Fluid-bed Granulator In Medicine

Main Features

1.By using powder granulation, to improve the liquidity and thinner dust.

2.By using powder granulation, to improve solubility property.

3.Mixing—granulation—drying can be finished in one device (one-step granulation)

4.To adopt antistatic filtering mediums, to ensure safe operation.

5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.

6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

Technical Parameters:

Model-FL	5	30	60	120	200	300	500
Capacity(Kg/Batch)	5	30	60	120	200	300	500
Material yield Rate(%)	>/=99%
Qualified Rate (%)	</=85%
Container Volume(L)	22	100	220	420	670	1000	1500
Diameter(mm)	500	700	1000	1200	1400	1600	1800
Power of Fan(Kw)	3	7.5	11	18.5	22	30	45
Liquid Feed Power(Kw)	0.37
Pressure of Steam(MPa)	0.4~0.6
Consumption Steam(Kg/h)	18	60	120	140	180	310	400
Compress Air Pressure( MPa)	0.4~0.6
Consumption of Air(m3/min)	0.3	0.9	0.9	0.9	1.1	1.1	1.5
Working Temperature C	Room temperature~120C adjustable
Noisy(dB)	Installed separated with fan </=75

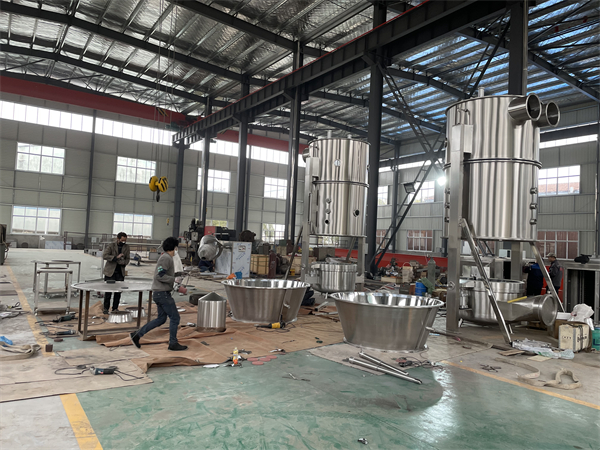

OUR FACTORY:

Company Information

International high quality certification product chain
Manufacturer, more reasonable price.
Solid technical support and after-sales service
Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
Exports to more than 20 countries and regions, good customers feedback
One-stop service, customized exclusive project feasibility report

Before offering you a good price, We need to know the information as below:

What is your material name?

What is the initial moisture percentage before drying?

What is the residual moisture percentage after drying?

What is the heating temperature your material can undertake during dryingprocess?

What is the heating source, steam, electricity, natural gas or others?

Last but important, what is capacity how many kgs/h before drying or after drying?
