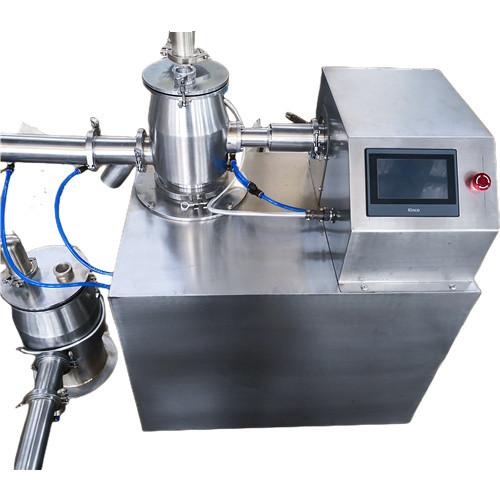

Principles
The powder raw material and adhesive in a cylinder are mixed fully
at the bottom to turn into a humid soft material. Then it is
crushed at a high speed and become uniform granules.
Technical parameters
parameter
type | GHL-5 | GHL-10 | GHL-20 | GHL-30 | GHL-50 | GHL-100 | GHL-200 | GHL-250 | GHL-300 | GHL-400 | GHL-600 | GHL-800 | GhL-1000 | G-L-1200 | GHL-1500 |
| Capacity (L) | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 250 | 300 | 400 | 600 | 800 | 1000 | 1200 | 1500 |
Production capacity (kg/) | 1 | 3 | 6 | 10 | 15 | 30 | 60 | 80 | 120 | 150 | 200 | 250 | 300 | 400 | 500 |
Stirring power(kw) | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 | 11 | 15 | 22 | 30 | 37 | 45 | 45 | 55 |
Mixing time(min> | 0-7 |
Stirring speed(r/min) | 0-400 | 0-300 | 0-200 | 0-150 | 0-110 |
Cutting power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22 | 30 |
Cutting time(min) | 0-5 |
Cutting speed(r/min) | 0-2900 |
Compressed air pressure(Mpa) | 0.4-0.6 |
Amount of compressed air(m3/min) | 0.3 | 0.6 | 0.9 | 1.1 | 1.5 | 1.8 |
Note: cutting machine 2,4 ~ 6, mixing motor parameter reserves the
rights of modification, without prior notice
Features
The machine adapts a practical horizontal cylinder structure.
The driving shaft is equipped with inflatable seal. While washing,
the air can be replaced by water.
Fluidized granulating processed is used and the final granules are
quite round with high fluidity.
Compared with traditional technique, this type of machine can
reduce 25% of adhesive and also shorten the drying time.
For each batch of material, with 2 minutes' dry mixing and 1-4
minutes' granulating, the efficiency is 4-5 times higher than that
of traditional technique.
Dry mixing, wet mixing and granulating are finished inside the same
sealed container, which is in conformity with the requirements of
"GMP".
Process flow chart
Corresponding table of length, width, height and diameter of
high-speed mixer
type
Size
Data | GHL-5 | GHL-10 | GHL-20 | GHL-30 | GHL-50 | GHL-100 | GHL-200 | GHL-250 | GHL-300 | GHL-400 | GHL-600 | GHL-800 | GK.-1000 | Q-L-1200 | GHL-1500 |
| A | 850 | 900 | 1000 | 1100 | 1250 | 1350 | 1650 | 1650 | 1800 | 2000 | 2400 | 2400 | 2600 | 2800 | 3000 |
| B | 450 | 550 | 600 | 700 |
| C | 450 | 550 | 600 | 700 | 800 | 900 | 1000 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1800 |
| D | | | | | | 2300 | 2400 | 2400 | 2500 | 2600 | 2800 | 3000 | 3300 | 3400 | 3500 |
| E | 1220 | 1300 | 1300 | 1350 | 1400 | 1400 | 1600 | 1600 | 1650 | 1650 | 1850 | 1900 | 2200 | 2300 | 2300 |
| F | 650 | 750 | 900 | 1000 | 1200 |
| φ1 | 219 | 300 | 400 | 500 | 600 | 700 | 750 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1550 |
| φ2 | 180 | 250 | 350 | 400 | 500 | 500 | 550 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
| φ3 | 102 | 102 | 133 | 133 | 159 | 159 | 200 | 200 | 200 | 200 | 250 | 250 | 300 | 300 | 350 |
| φ4 | 63 | 76 | 89 | 89 | 102 | 133 | 150 | 150 | 150 | 150 | 180 | 200 | 200 | 219 | 219 |
Note; the overall dimensions reserves the rights of modification,
without prior notice
FAQ
Q1: What's the raw material you want to grind? (Like chili, sugar, herbs...etc)
Q2: What's the size of your raw material? (Such as 10 mm,15 mm...etc)
Q3: What's the capacity of the machine you need? (Like 50 kg/hr, 300 kg/hr,500 kg/hr..etc)
Q4: What's the finished powder fineness you want to get? (mesh, mm or micron)
Q5: What power do you use in your factory?-V,-Hz, 3 phase or single phase? (Like 220 V , 50 Hz , single or 380 V, 60 Hz etc)We are happy to offer you the best products at competitive prices.
There are also quotations for other models of our production,
please feel If you have any requirements, you can contact us at any
time.
