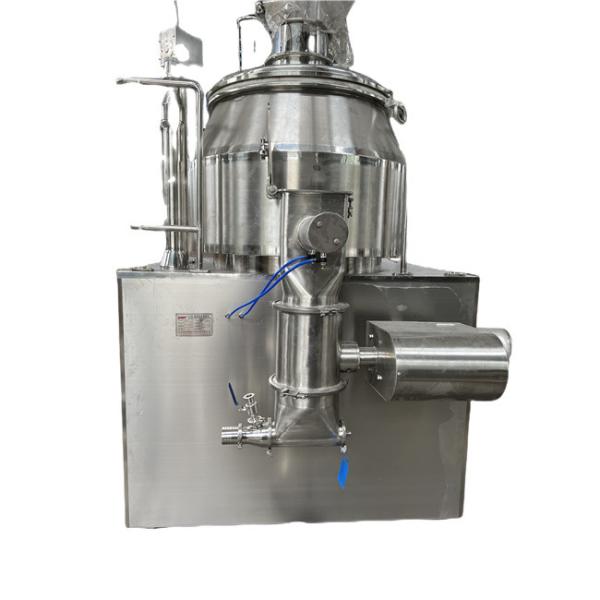

GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer

Ask Lasest Price
Brand Name :	SNYNXN
Model Number :	GHL 400
Certification :	CE ISO GMP
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100 SET/ YEAR
Delivery Time :	WITHIN 50 DAYS

Add to Cart

Product Details
Company Profile

GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer

Name: Wet Mixing Granulator Rapid Powder Mixer Granulator

GHL Type Chemical High Speed Wet Mixing Granulator Rapid Powder Mixer Granulator

Description:

The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.

Features

1. It is the structure of horizontal cylinder (cone).

2. Full sealed driving shaft, to use water when cleaning.
3. Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4. Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5. Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process,it has improved by 4-5 times.
6. All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7. Whole operation has the strict safety precautions.

Main Technical Data

Model	GHL-200	GHL-300	GHL-400	GHL-600
Volume	200L	300L	400L	600L
Output	30-75kgs/batch	30-120kgs/batch	50-150kgs/batch	/
Operating time	Mixing:2min Granulation:7-14min/batch			Mixing:8min Granulation: 15-20 min/batch
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed	30-260rpm	30-220rpm	25-220rpm	20-200rpm
Mixing power	15kw	18.5kw	22kw	30kw
Granulation Speed	50-3000rpm
Granulation power	4kw	5.5kw	7.5kw	11kw
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air	Φ10mm
Height of the output	985mm			1150mm
Dimension	2180×810×1950mm	2420×1060×2150mm	2420×1060×2150mm	2980×1200×2500mm
Weight	1350kg	1600kg	1900kg	2200kg

GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer

Our Company

- Since year 2007, SNYNXN CHINA had started manufacturing Pharmaceutical machines such as Drying Machine, Granulating Machine, Crushing Machine, Mixing Machine and Evaporating equipment.

- SNYNXN CHINA designs different types of Pharmaceutical Materials Preparation Drying lines for customers, including standard or non-standard models.

- SNYNXN CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand

Packing & Shipping: All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.

FAQ

Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?
A: Our factory is located in Jiangyin city Jiangsu Province. Just let us know your schedule in advance and we will arrange
everything for you!

Any other doubts about our machine, please feel easy to contact with us.
