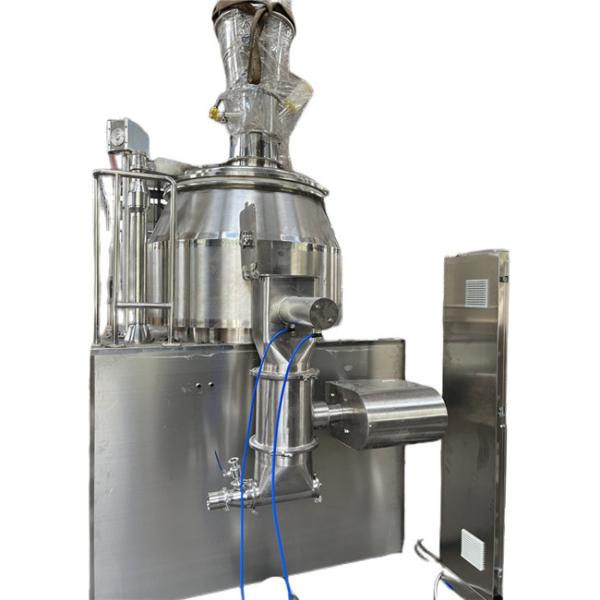

    GHL Pharmaceutical Shear High Speed Mixer Granulator RMG Powder Granulation Machine

    Ask Lasest Price
    Brand Name : SNYNXN
    Model Number : GHL 400
    Certification : CE ISO GMP
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 SET/ YEAR
    Delivery Time : WITHIN 50 DAYS
    • Product Details
    • Company Profile

    GHL Pharmaceutical Shear High Speed Mixer Granulator RMG Powder Granulation Machine

    Description: Wet Mixing Fertilizer Powder Granulation RMG Machine

    GHL Pharmaceutical Shear Rapid Mixer Granulator Wet Mixing Fertilizer Powder Granulation RMG Machine


    GHL WET MIXING GRANULATOR
    1, GHL Series is the new type pharmaceutical machinery, designed on the basis of adopting the principle of one-step granulator. It can blend and mix the dry powder rapidly, then the even wet powder and granulator. It meets the requirements of GMP Standard.
    2,It can be widely used in pharmaceutical industry, chemical industry, foodstuff industry, powder metallurgy, cosmetic industry, dying stuff industry, and so on.
    3,The advantages: high efficient; fast; even; mixing and granulating in the same chamber.
    Working Principle
    Blending wheel has three leaves with special shape, which is rotated with a certain speed driven by the gearing to make the material moving regularly. So it can mix the raw material efficiently. The mixed wet material is cut into even particles in a short time by the high speed rotary cutter The process of mixing, wetting and granulating go on automatically and continuously within ten minutes.
    Product Paramenters
    Type
    GHL-50
    GHL-150
    GHL-200
    GHL-250
    GHL-300
    GHL-400
    Volume (L)
    50
    150
    200
    250
    300
    400
    Capacity (kg/batch)
    15
    50
    80
    100
    130
    200
    Blending speed (rpm)
    300/210
    270/180
    270/180
    188/130
    160/110
    120/85
    Blending power (KW)
    4/5.5
    9/11
    11/14
    11/14
    11/14
    15/17
    Cutting power (KW)
    1.5/2.2
    2.4/3
    3.3/4
    3.3/4
    4.5/5.5
    6.5/8
    Cutting speed (rpm)
    1440/2900
    Working time (min)
    8-15
    Particle size (mesh)
    20-80


    CERTIFICAITONS:


    GHL Pharmaceutical Shear High Speed Mixer Granulator RMG Powder Granulation Machine

    EXHIBITIONS:

    OUR FACTORY:

    FAQ
    ARE YOU REAL FACTORY OR TRADING COMPANY?
    YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare , you will know we are most expert and big factory in this !

    WHAT MACHINE YOUR COMPANY HAVE? CAN CUSTOMIZED MACHINE UPON MY NEEDS?
    Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
    We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quote.

    CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE
    YES ! Our company have build more than 20years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!

    HOW TO VISIT YOUR COMPANY?
    Our company is in WUXI city, near shanghai city, only 90mins away from Shanghai Hongqiao Airport.
    Or you can call me +86 13921367085 anytime you arrive Shanghai, I will pick you up.

    WHAT'S YOUR BEFORE & AFTER SERVICE ?
    1) Professional advice and rich experience help to choose machine.
    2) Longtime maintainance and considerate technical support
    3) Technicians can be sent to abroad to install.
    5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only
    damaged by machine itself).
    4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
    5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.

    WHAT'S YOUR SHIPPING ITEM PROCESS?
    We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
    If your need , we can help you do custom clearance .
    Packaging Details: 1. Outside package: Standard export wooden cases.
    2. Inner package: Stretch film.

    Delivery Details: Machine will be finished in about 35 workdays after payment.

    HOW ABOUT YOUR PAYMENT TERM?
    1. Normally we can work on T/T or L/C.
    2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
    3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
    5) Video / CD of test running and installation, Maunal book, tool box sent with machine
