Automatic Single Step Fluid Bed Drying Equipment Food And Pharmaceutical Powders

Machine Name: One Step Powders Fluid Bed Dryer Granulator

Description:

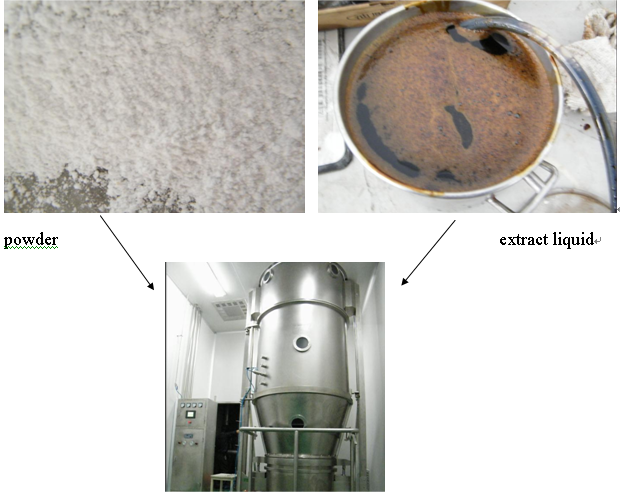

Powder materials fed into hopper sealed container will form a suspending & fluidizing state and flow circularly owing to hot air steam action so as to reach to be uniformly mixed, and then fog type adhesive is sprayed to lubricate/wet powder inside the container, making powder to be condensed as small porous grains and finished grains, that is to say, due to high effective drying & continuous vaporized moisture on continuous condensed powder under hot air-steam action, ideal, uniform and porous ball-shaped grains will be formed in the container at three operation of mixture, granulation and drying finished a time, namely "One Step Granulating".

Application:

This dryer is applicable for the mixture, granulation and drying of powder materials. It is widely used in the fields of medicine, foodstuff, chemical, light industry, etc and is one of the granulating drier adopted extensively in the world at present.

Technique parameters

Item			3	5	30	60	120	200	300	500
Container of raw material	Dia.	mm	300	400	700	1000	1200	1400	1600	1800
Container of raw material	Volume	L	12	22	100	220	420	670	1000	1500
Production capacity	Min	Kg/batch	1.6	4	15	30	80	100	150	250
Production capacity	max	Kg/batch	4	6	36	72	140	240	360	600
Consume of steam		Kg/batch	12	23	70	140	211	282	366	465
Amount of compressed air		M3/min	0.3	0.3	0.3	0.6	0.6	0.9	1.1	1.6
Power of fan		kW	2.2	4	5.5	11	18.5	22	30	45
Temperature		℃	From room temperature to operating temperature in 120℃ to be set randomly
Yield		%	>99
Option time		Min	15-30
Content at final term		%	-0.2
Noise		dB	≤75
Height of main machine		mm	2100	2300	2500	3000	3300	3800	4000	4400

ADVANTAGES:

1). All parts of contacted with raw materials are made up by stainless steel.

2). Seated using silastic gas-filled sealing ring.

3). Able to control granular size by means of two-flow spraying gun.

4). Able to finish mixture, granulation and drying in the same sealed container thanks to rapid & high effective operation, thus preventing powder from fly up, leakage and pollution.

5). The upper top and lower bottom of the machine are all butterfly seal joints which are beautiful in shape, small in air resistance, clean, easy to be washed, have no dead comer and are in conformity with requirements of GMP.
