Milk Juice Powder Pharmacy Fluidized Bed Granulator Coating Pharmaceutical Industry

Ask Lasest Price
Brand Name :	SNYNXN
Model Number :	FL 120
Certification :	SGS CE ISO GMP
Price :	NEGOTIABLE
Payment Terms :	T/T, L/C
Supply Ability :	100 SETS/ YEAR
Delivery Time :	60 DAYS

Add to Cart

Product Details
Company Profile

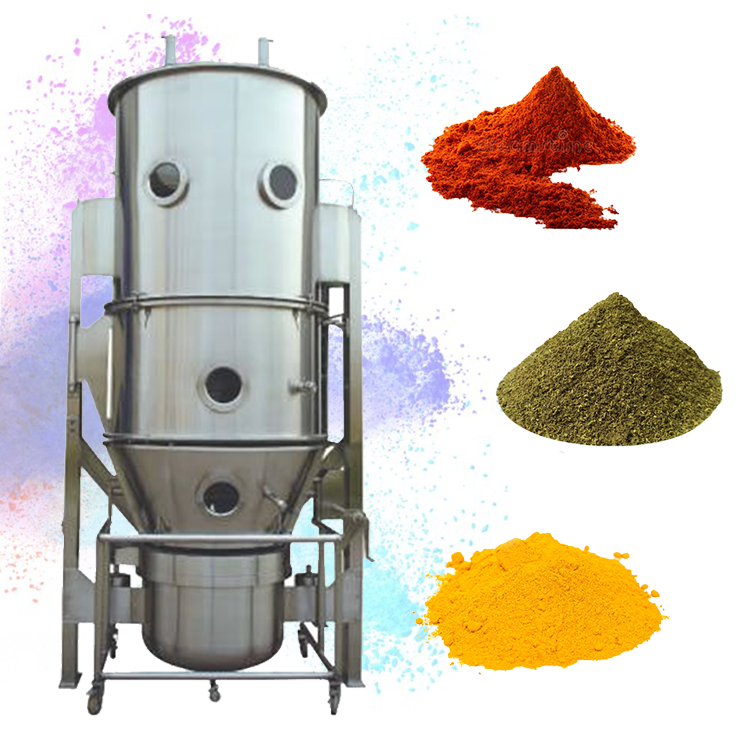

Milk Juice Powder Pharmacy Fluidized Bed Granulator Coating Pharmaceutical Industry

FL-Series Vertical Milk Juice Powder Pharmacy Granules Fluid Bed Dryer Coating Pharmaceutical Industry

Description:

The fluid bed dryer is a granulating drying equipment widely used in the world at present. It is an equipment that integrates
mixing, granulating, and drying in the same airtight container (i.e., one-step granulator). It is suitable for mixing powdered
materials, granulating and drying with drying equipment. It is widely used in pharmaceutical, food, chemical, light industry and
other fields. All parts in contact with the material of the boiling granulating dryer are made of stainless steel, sealed with
silicone rubber inflatable sealing ring, and the particle size can be controlled by a two-flow spray gun.

Working Principle

1.Material goes evenly into the bed through feeding conveyor and feeder,under the action of the vibration force,the material moves up forward continuously along the horizontal direction,while undergoes heat exchange with the hot air coming up from bottom.

2.The moisture of material is evaporated rapidly,and the wet air is discharged from the exhaust fan,and the material is fully dried and discharged from the discharge port.

Applications

Industrial vibration fluidized bed dryer applicable to chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries powder, granular materials, dry, cooling and other operations. Such as:tea,ajinomoto, monosodium glutamate,radish silk, soybean meal,lees, seeds,food slag,compound fertilizer etc.

Advantages

1. Fluidized processing makes drying more uniform.

2. The vibration speed and amplitude can be adjusted at any time.

3. Closed structure to ensure a clean working environment.

4. The surface damage of the material is very small, and the irregular particles do not affect the processing effect.

5. High thermal efficiency, energy saving effect can be increased by 30%-60% compared with other drying devices.

Technical Parameters

Capacity (Kg /batch)	5	15	30	60	120	200	300	500	800-1000
Scope of application for liquid(g/cm3)	<1.3								By client
Material yield rate (%)	≥99
Qualified rate of end products (%)	≥85
Container volume (L)	22	45	100	220	420	670	1000	1500
Diameter r(mm)	500	550	700	1000	1200	1400	1600	1800
Power of fan (Kw)	3	5.5	7.5	11	18.5	22	30	45
Power of supply liquid motor (Kw)	0.37
Pressure of steam (Mpa)	0.4-0.6
Consumption of steam (Kg/h)	18	35	60	120	140	180	310	400
Pressure of compressed air (Mpa)	0.4-0.6
Working temperature (℃)	Normal temperature -120℃ could adjust
Overall dimension of machine (L×W×H)	refer to installation drawing or customer’s room

OUR FACTORY:

Milk Juice Powder Pharmacy Fluidized Bed Granulator Coating Pharmaceutical Industry

FAQ

1.Are you manufacturer or trader? Where are your factory located?

We are manufacturer and we are located in Henan,China.and we can provide the competitive price and good quality.

2.Can I use my own raw materials for extraction test?

Yes, of course. We can do extraction tests and send videos and test reports for your reference.

3.Do you have OEM service? Do you provide parts?

Yes, we will, as long as you provide us with your drawings and detailed requirements.

4.How can we visit your factory?

You can fly to Shanghai airport, it's only 2hours away by car, you may tell us your flight. We will arrange a driver to pick you up.

5.What is the voltage of the equipment?

The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
